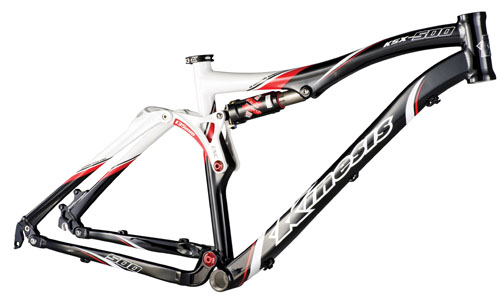

KSX-500

Using cutting edge CNC link/Chain stay yoke and droput. With KSX-500, you can climb the mountains
efficiently and enjoy the descent with plenty of fun.

Kinesis exclusive SPF formed 7005 series aluminum front triangle. Less weld, less weight,
more strength. Attractive appearance which combines durability and lightness.








Optional colors

Seatpost Ø 31.6mm
Seat tube Ø 34.9mm
Wheel travel: 135.7mm
Shock eye-eye: 190-22.2-22.2
Shock travel: 50mm
SIZE ET ST HT BD RC SA HA FL FO
  SML 555 390 110 7.8 435 73.0° 70.75° 500 39.5
  MED 580 430 120 7.8 435 73.0° 70.75° 500 39.5
  LRG 595 480 135 7.8 435 73.0° 70.75° 500 39.5
  XLG 610 530 140 7.8 435 73.0° 70.75° 500 39.5
