KR-605 (Tapered Head Tube)

SPF concave side-walls top tube, down tube and seat tube.
The flared design set tube perfectly hug the rear wheel eliminate the wine pressure.
Using the taper head tube to make the join of fork and frame more stabilized.
The carbon seat stay improve the absorption of vibration.
These all provide the perfect combination of strength and lightness.

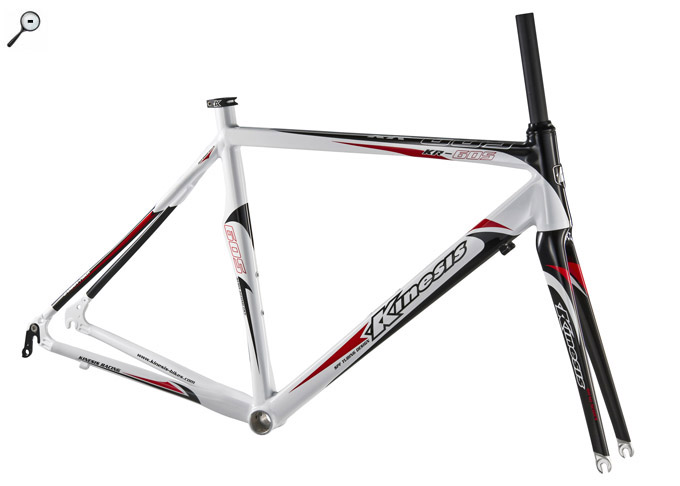

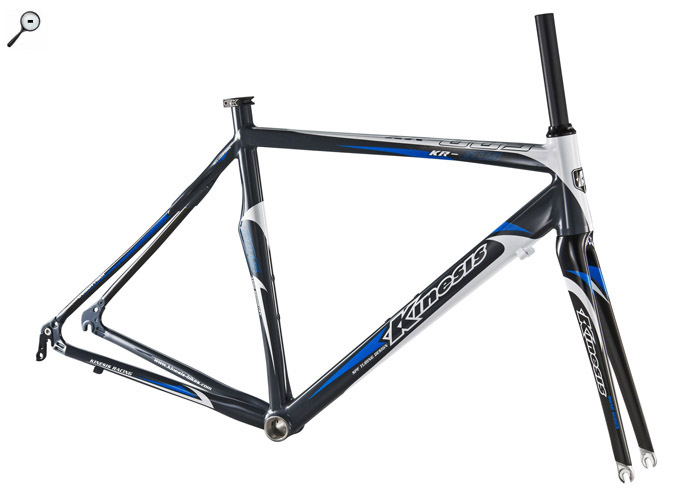

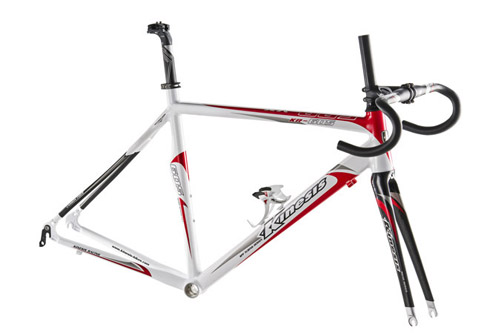

Optional colors


Seatpost Ø 27.2mm
Seat tube Ø 31.8mm
Tapered head tube :
Upper : 1-1/8
Lower : 1-1/2

Weight : 1530g(PAINTING,SIZE : MED,FRAME ONLY)

SIZE ET AT ST S/A H/A BD H/T FL FO RC
XSM 520 507.2 470 75 71.5 67.5 110 368 45 405
SML 535 522.8 500 74.5 72 67.5 120 368 45 405
MED 550 535 530 73.5 72.5 67.5 150 368 45 405
LRG 570 553.4 560 73 72.75 67.5 180 368 45 405
XLG 595 578.2 590 73 72.75 67.5 210 368 45 405
