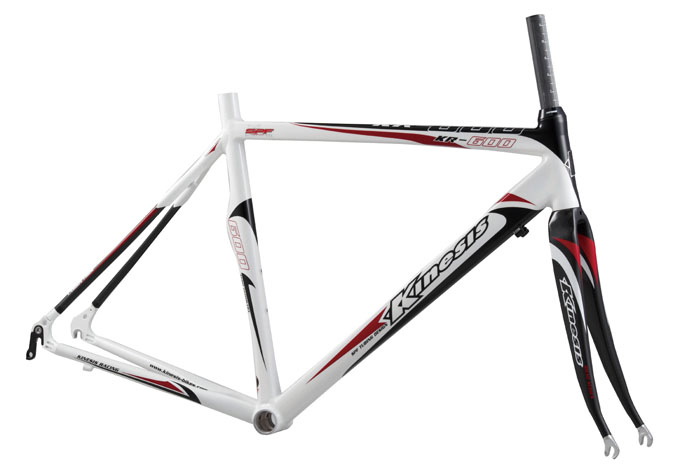

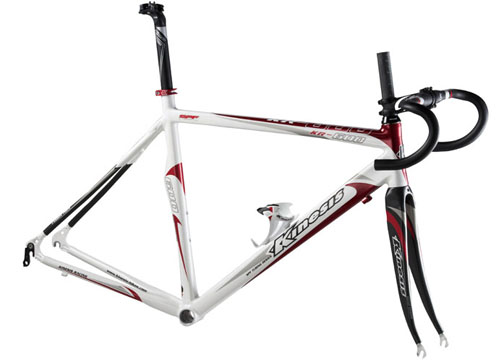

KR-600

SPF concave side-walls top tube, down tube and wheelhugging, flared seat tube; which carbon seat stays which improve the absorption of vibration, as well as providing the perfect combination of strength and lightness.
SMT (smooth welding).
One-piece A-style full carbon fiber seat stays.





Rear brake internal-cable
running inside the top tube

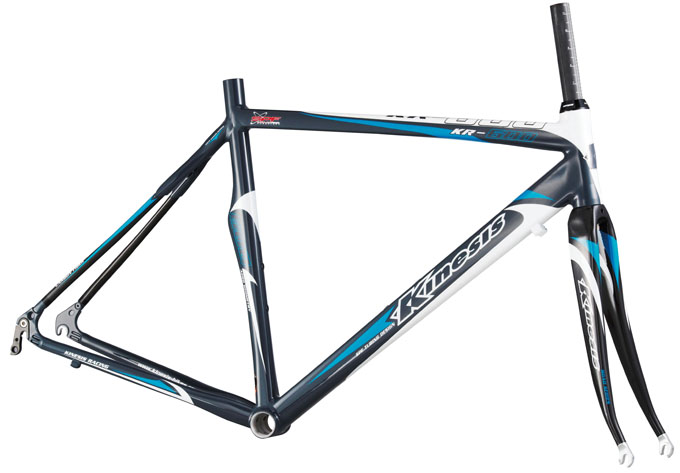

Optional colors

Seatpost Ø 27.2mm
Seat tube Ø 31.6mm
Weight:1500g(XSM)
SIZE ET AT ST HT BD RC SA HA FL FO
XSM 520 507.2 470 110 67.5 405 75.0° 71.5° 368 45
SML 535 522.8 500 120 67.5 405 74.5° 72.0° 368 45
MED 550 535 530 150 67.5 405 73.5° 72.5° 368 45
LRG 570 553.4 560 180 67.5 405 73.0° 72.75° 368 45
XLG 595 578.2 590 210 67.5 405 73.0° 72.75° 368 45
