KR-515

KR-515 use the innovated tubing forming technology SPF to shape most the tube on the frame.
The front part of the SPF chain stay was enlarged to join the BB i/o heavy & expensive cold
forged yoke, it makes the BB area become much stiffer, other than the stiffness,

it also creates the one piece looking normally was found on full carbon frame

The new SPF down tube was designed to match the shape of the top tube,
it makes the whole frame look more unique,also thanks to SPF,
the whole frame still keep light weight as usual.


By using SPF process to shape the complicate TT/DT/ST aluminum pipe at butted condition,
the whole frame wilL look more close to the full carbon frame ,
but the price is much cheaper.
It is the good choice for the rider if you consider the performance more than the name
of the frame material.

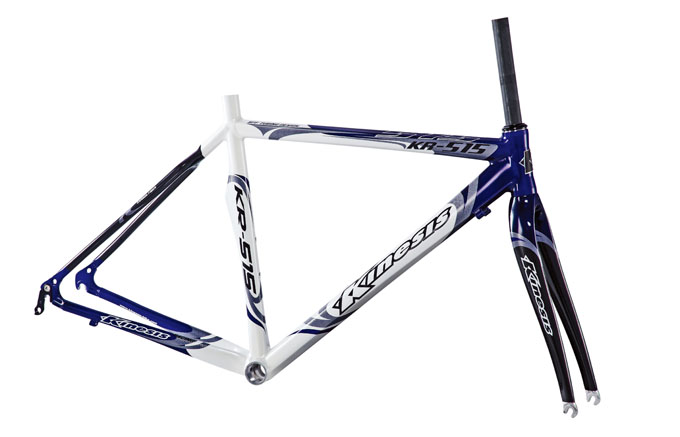

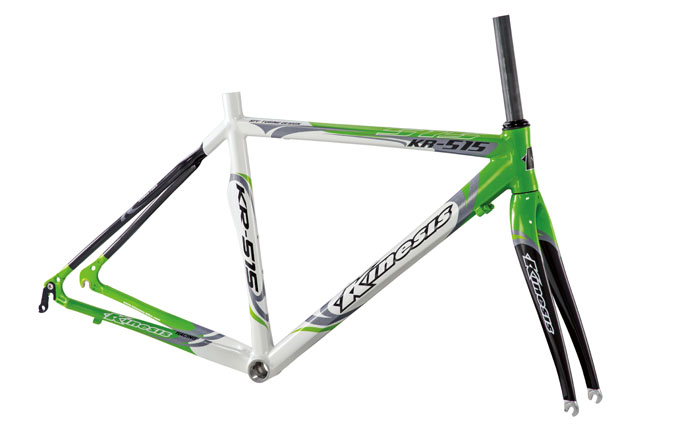

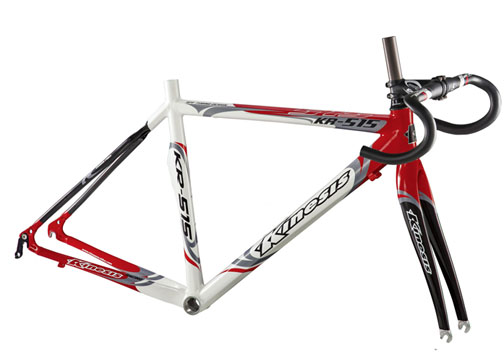

Optional colors

Ultra-strength bonded carbon fiber seat stay.
Seatpost Ø 27.2mm
Seat tube Ø 31.8mm
Weight:1535g (MED)
SIZE ET AT ST HT BD RC SA HA FL FO
XSM 520 507.2 470 110 67.5 405 75.0° 71.5° 368 45
SML 535 522.8 500 120 67.5 405 74.5° 72.0° 368 45
MED 550 535 530 150 67.5 405 73.5° 72.5° 368 45
LRG 570 553.4 560 180 67.5 405 73.0° 72.75° 368 45
XLG 595 578.2 590 210 67.5 405 73.0° 72.75° 368 45
