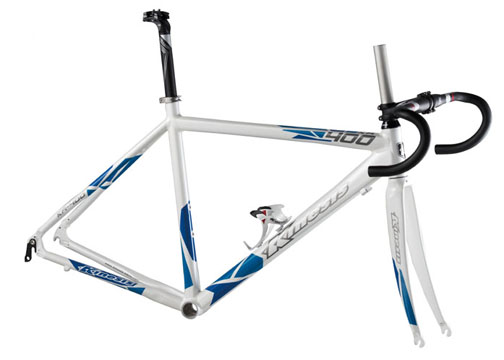

KR-400

Using same SPF top tube and down tube as KR-515
The seat tube is built with oversized dimensions at the
BB shell for stiffness,the rigid
bottom bracket ensures direct
transmission of force from
the pedal to the road

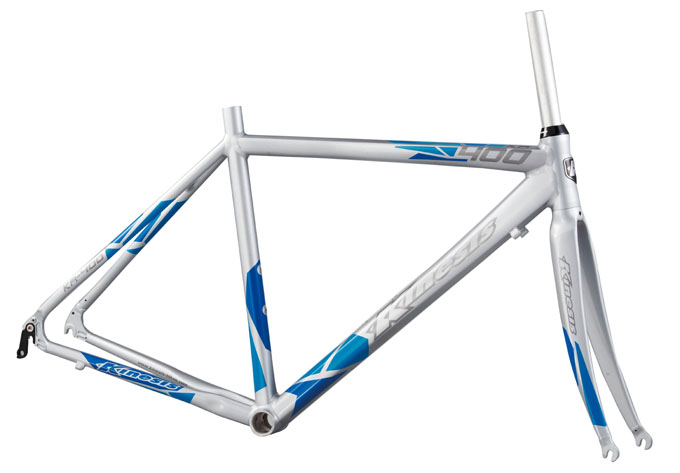

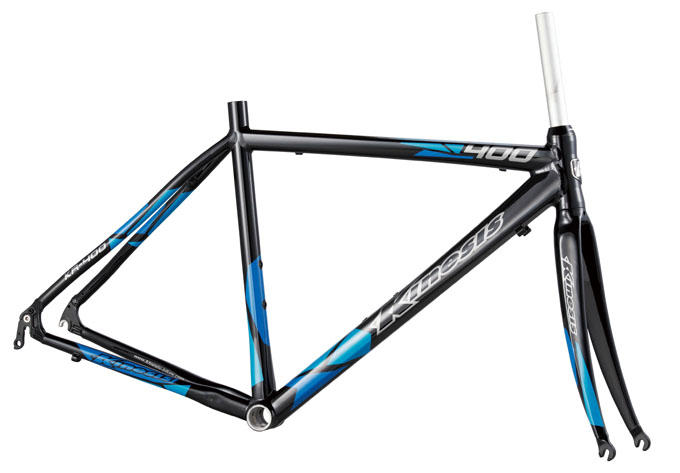

Optional colors

Seatpost Ø 27.2mm
Seat tube Ø 31.8mm
Weight:1540g (SML)
SIZE ET AT ST HT BD RC SA HA FL FO
XSM 520 507.2 470 110 67.5 405 75.0° 71.5° 368 45
SML 535 522.8 500 120 67.5 405 74.5° 72.0° 368 45
MED 550 535 530 150 67.5 405 73.5° 72.5° 368 45
LRG 570 553.4 560 180 67.5 405 73.0° 72.75° 368 45
XLG 595 578.2 590 210 67.5 405 73.0° 72.75° 368 45
