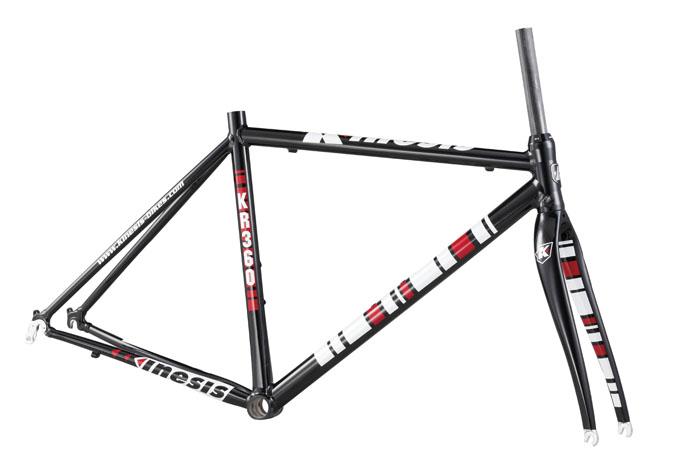

KR-360

Carbon may be the latest fashion , but alloy frame can do same things just as well.
At Kinesis,we spend a lot of time thinking about road frame,we study frame geometry,
manufacturing techniques and alloy material.
KR-360 uses advanced, exciusive Kinesium Alloy which was developed by Kinesis.
it's a superb tubing for use in lightweight, high performance frames.it is 25% stronger
than 7005 aluminum at the same weight level.
But we not only use the lightweight material to lower KR-360's weight,but also developed
new manufacturing techniques to reduce overall frame weight
without compromising strength
The weight is just 1190g for 50cm








Optional colors

Seatpost Ø 27.2mm
Seat tube Ø 31.8mm
Weight:1190g (SML)
SIZE ET AT ST HT BD RC SA HA FL FO
XSM 520 507.2 470 110 67.5 405 75.0° 71.5° 368 45
SML 535 522.8 500 120 67.5 405 74.5° 72.0° 368 45
MED 550 535 530 150 67.5 405 73.5° 72.5° 368 45
LRG 570 553.4 560 180 67.5 405 73.0° 72.75° 368 45
XLG 595 578.2 590 210 67.5 405 73.0° 72.75° 368 45
