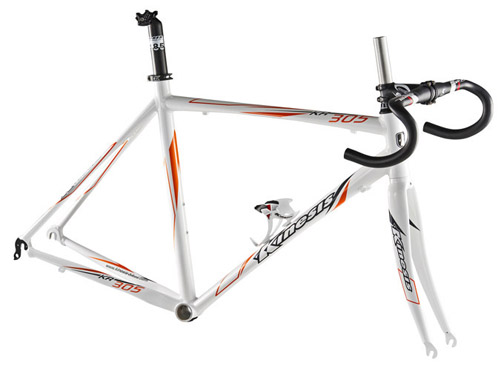

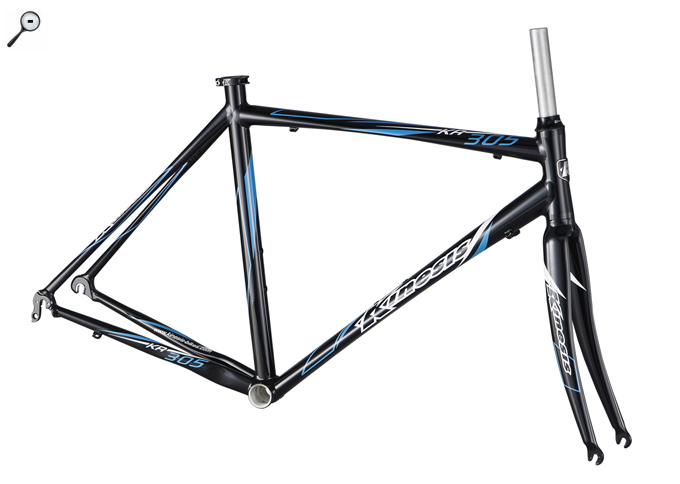

KR-305

The new lightweight top tube and a flattened and wide area where it meets the seat tube, helping to resist twisting forces along the front triangle. The down tube is ovalised where it meets the BB and head tube for maximum weld area and stiffness.








Optional colors


Seatpost Ø 31.6mm
Seat tube Ø 34.9mm

Weight : 1450g
(PAINITNG,SIGE : SML,FRAME ONLY)
SIZE ET AT ST HT BD RC SA HA FL FO
44CM 510.4 494.5 440 110 67.5 405 74.5 72 368 45
XSM 520 507.8 470 110 67.5 405 75 71.5 368 45
SML 535 524.4 500 120 67.5 405 74.5 72 368 45
MED 550 536.7 530 150 67.5 405 73.5 72.5 368 45
LRG 570 555.2 560 180 67.5 405 73 72.75 368 45
XLG 595 580.1 590 210 67.5 405 73 72.75 368 45
